Model
|
1000W50 | |
|
System Rated Voltage
|
12/24V(Auto)
|
|
|
Wind Turbine
|
Rated Voltage
|
12VAC
|
|
MPPT(Boost Up)
|
7VAC
|
|
|
Max Current
|
41.7A
|
|
|
Workable Power
|
0~500W
|
|
|
AC Rectify DC
|
16.8VDC
|
|
|
Charge Current
|
29.8ADC
|
|
|
Brake
|
Start Voltage
|
15VAC(21VDC)
|
|
Recover Voltage
|
13.5VAC
|
|
|
Max Current
|
35ADC
|
|
|
Solar Module
|
Voc
|
24V~27.6VDC
|
|
Vmp
|
15V~22VDC
|
|
|
Charge Current
|
33.3A
|
|
|
Workable Power
|
0~500W
|
|
|
DC Load
|
Out Put Power
|
0~120W
|
|
Rated Voltage
|
12VDC
|
|
|
Max Current
|
10A
|
|
|
Environment
|
Temperature
|
1)Working:-20℃ ～55℃; 2)Storage:-40℃ ～80℃
|
|
Humidity (°C)
|
10% ～ 90% No condensation
|
|
|
Protection Grade
|
IP30
|
|
|
Others
|
Conversion Efficiency
|
﹥98%
|
|
Operation Mode
|
Default to streetlight mode
|
|
|
Communication
|
Bluetooth(Point to Point, only workable for Andriod Smartphone)
|
|
|
Weight
|
N.W: 3KGS/G.W: 4KGS
|
|
|
Packing Size
|

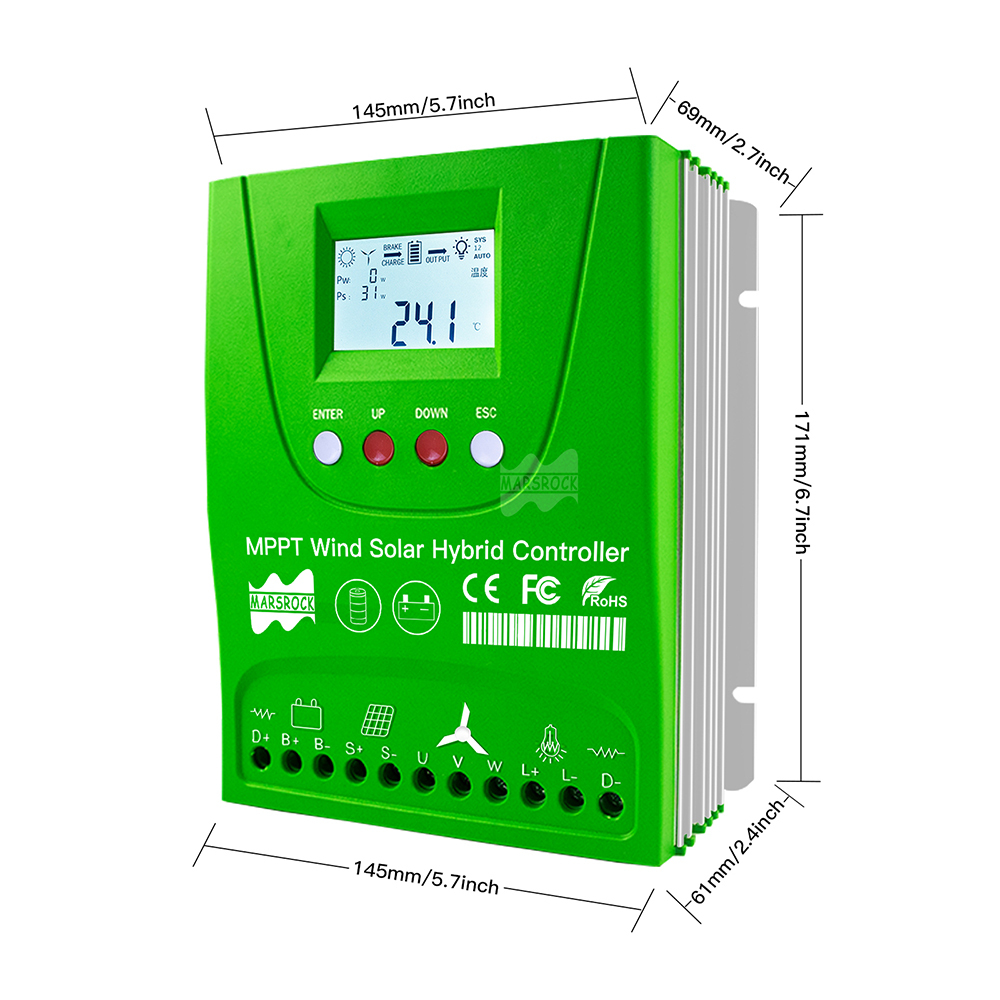

Product size：171*145*69mm/PK Size: 200*350*120mm
|
|
Perfect Protection
Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.
